Katran-M CIWS (Close-In Weapon System) - Ukraine

Missiles, Guns, Grenade (Explosive and Smoke) Launchers, Electro Optic Sensors,
Fire Control System  from  Ukraine



Katran-M showing the 2 Baryer SSM side launchers

The Katran-M  CIWS  (Close-In Weapon System) is a bolt-on, stand-alone weapons system with multiple armaments – Missiles,  Guns,  Grenade (Explosive and Smoke) Launchers; with its own  Electro optic Sensors, Stabilization System and Fire Control System.

The Katran-M  CIWS was developed by Ukrainian defense scientists for naval use from the successful BM-3 Shturm Overhead Weapon Station (OWS) used in Armored Fighting Vehicles like the BTR-3E1.



Fire Control System -   Sensors Monitor (Top),Control/Trigger Device (2 views)

It is a naval system comprising of multi-layered, multi-dimensional firepower with built-in sensors, Stabilization System, and Fire Control System, defending against surface, air and ground targets, from up close to up to 5 kilometers away.

Katran-M  Schematic View

30mm ZTM-1 Automatic Cannon

Anti-Missile, Anti-Ship, Anti-Air, Shore Support


(Two)   Baryer Surface to Surface Missiles

Anti-Ship, Anti-Air (Low & Slow), Anti-Armor


KBA-117 (AG-17) 30mm Automatic Grenade Launcher

Anti-Ship, Anti-Air (Low & Slow), Shore Support

KT-7,62 (PKT) 7.62mm Machine Gun

Anti-Boat, Anti-Air, Anti-Personnel


(Six)  902V type 81-mm Smoke Grenade Launchers

Smoke camouflage defense




Katran-M – Track Sighting

The Katran-M  CIWS was recently installed on the new 2,500 ton corvette of the Equatorial Guinea Navy, according to Jane's Naval Weapon Systems, 20 April 2012.

Overhead view of 2 Katran-M’s on corvette stern



SPECIFICATIONS

Armaments:

ZTM-1 30mm Automatic Cannon: It operates in automatic fire mode using a remote electric trigger, and controlled electro mechanically. High-Explosive or Armor Piercing rounds are loaded from 2 belt magazines stored in two ammunition boxes with 400 rounds of ready use ammunition. Rate of Fire is 330 rpm. Armor Piercing (AP) bullets have an effective range of 2,000 meters while High Explosive Tracer (HET) and High Explosive Incendiary (HEI) bullets have an effective range of 4,000 meters.


ZTM-1 30mm Automatic Cannon 4,000 meters effective range, 330 rounds/minute

30mm Rounds

BARYER SSM Missile System (Two): A 5 kilometer maximum effective range with Semi-Automatic Laser (SAL) guidance, tandem hollow-charge warhead with not less than 800 mm armor penetration behind ERA



R-2 SSM missile with launch and transport containers

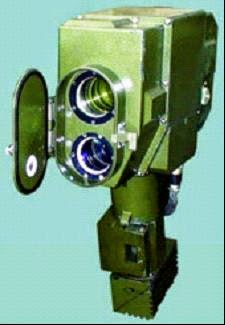

Laser Sight-tracker



KBA-117 (AG-17) 30mm Automatic Grenade Launcher: Rate of Fire 50-400 rpm, Maximum Effective Range 1700 meters, Ready Ammunition 87 (29 х3) rounds

Automatic Grenade Launcher

Automatic Grenade Launcher  - Grenades

KT-7,62 (PKT) 7.62mm Machine Gun: Maximum Rate of Fire 700-800 rpm, Combat Rate of Fire 250 rpm, Effective Range 2000 meters, Ready Ammunition 2000 rounds

KT-7,62 (PKT) 7.62mm Machine Gun



KT-7,62 (PKT) 7.62mm Machine Gun ammunition

902V type 81-mm Smoke Grenade Launcher: Range 200-300m, Ready Ammunition 6 grenades

Smoke Grenade Launchers

Smoke Grenades



Fire Control System and 2-Axis Stabilization System:

Electromechanical Servo Drives for stabilization
Aiming Angles: Traverse – 360 degrees; Elevation –  from - 5 to + 45 degrees
Biplanar electromechanical Weapon Stabilizer and Fire Control System

Track Sighting System control panel



Stabilizer System Components




Sensors:


Video camera,  Infra Red camera,  Laser Rangefinder



Panoramic Observation System video camera / Monitor

Video camera (range: 5,000m daylight; 800m night with illumination), and  Infra Red camera (range: 2,500-5,000m) day-and-night Camera Sighting System, with integrated laser rangefinder (range:  160-5,000m)

Choice of 2 Control Channels

Retractable overhead 360-degree traverse Panoramic Observation System video camera (2 degree angle coverage resolution)




APPLICATIONS



1. PF-15 class cutter - As a CIWS, to add firepower against missile and small boat threats, anti-armor on shore, additional Sensors/Fire Control System suite

2. Rajah Humabon class DE – As a CIWS, to add firepower against missile and small boat threats, anti-armor on shore, additional Sensors/Fire Control System suite

3. Auk’s and PCE’s patrol ships – As a CIWS, to add firepower against missile and small boat threats, anti-armor on shore, Sensors/Fire Control System suite


4. Aguinaldo class and PKM patrol gunboats – As main weapons system and  Sensors/Fire Control System suite

5. Kagitingan and Yap class patrol gunboats – As main weapons system and  Sensors/Fire Control System suite

6. Andrada class FPB’s – As main weapons system and Sensors/Fire Control System suite

7. LST’s, LSV’s – As main weapons system and Sensors/Fire Control System suite


8. Auxiliary ships – As main weapons system and Sensors/Fire Control System suite


9. Mobile Shore installations – As an anti-aircraft, anti-ship, and coastal defense weapons system


10. V-150, Simba, other APC’s – as a weapon system for conversion to Armored Fighting Vehicle role



The Katran-M  CIWS has the potential of controlling other cannons and guns in Philippine Navy ships as the Fire Control System. By utilizing its Video and Infrared day-and-night cameras together with its integrated Laser Rangefinder, the accuracy and effectiveness of other cannons and guns can be greatly enhanced.


PCE with Katran-M  CIWS



The Katran-M  CIWS Close-In Weapon System can substantially enhance to a higher level the situational awareness and firepower of all Philippine Navy ships thereby presenting a very credible naval defense posture for our country. And at a more affordable price with potential technology transfer.


Aguinaldo with Katran-M   CIWS



Basler BT-67 Multi-Mission Patrol Aircraft (MMPA) For the Philippines

    The Basler Turbo Conversions BT-67 is an excelent proven transport aircraft with an impressive resume of performance.  It's robust airframe and state-of-the-art components stand ready to deliver a range of special mission capabilities that will provide unlimited opportunities. It is an affordable aircraft with:

• Low acquisition costs
• Low operation costs
• Heavy payload capability
• Excellent short field capability
• Stage III quiet
• Advanced avionics package
• Proven in-service modifications for different configurations

Basler BT-67 with PT-6 engines and Hartzell propellers

    The Basler BT-67 is a new-condition aircraft with the proven tough and very reliable Douglas C-47 design; strengthened, stretched and re-engineered to exceed original specifications.  It is rated as "zero accumulated fatigue damage" fuselage with new interior corrosion protection, stretched 40-inches (forward of wing); with the center and outer wings reinforced in 250 places to reduce loads on lower wing attach angles and to support the increased maximum gross weight. The wings have redesigned outer leading edges and wing tips for better aerodynamics. All workmanship and materials meet the highest standards of the U.S. Federal Aviation Administration (FAA).

Basler BT-67 modified nose for sensors

    The Basler BT-67 is powered by the proven Pratt & Whitney Canada PT6A-67R engine series that is certified to FAR Part 33 amendment 10, with Hartzell 5-blade aluminum reversing propeller. This reliable and efficient combination is certified to FAR Part 36 stage III quiet standard.

Proven Reliable Economical Pratt & Whitney Canada PT6A-67R engine

    The Basler BT-67 is equipped with new systems including Avionics, Autopilot, Electrical, Hydraulics, Fuel, Air conditioning, Stall Warning, Oxygen, and Fire protection, among others. These has resulted in:

Specialized modifications

• 35% more interior volume
• 43% more useful load
• 24% more speed
• Up to 100% more fuel capacity
• Lower stall speed
• Lower approach speed

Latest Technology Panel and Avionics

    The Basler BT-67 can be specially configured to suit the different requirements of the government of the Philippines, including the Armed Forces, Defense and civilian departments. It can loiter over an area for ten hours utilizing its very low stall speed capability. Single-engine performance was improved by a new propeller to tackle single-engine emergencies, as required by the U.S. military.

The advantages of the Bassler BT-67, proven across many Air Forces, including the US

• Cost - you can acquire more than twice the number of aircraft with the given budget
• Customizable - based on myriad configurations of past modifications, for an exact needed configuration
• Very rough field capability - based on a proven tough reliable platform, making more airfields accessible
• Multi Misson - cargo, gunship, passenger; and civilian roles - Survey, Firefighting, Rainmaking, Search and Rescue
• Low stall speed - for more effective Search and Rescue

Basler Turbo Conversions’ long experience on different role versions of the BT-67 can provide the following roles and capabilities:

• Maritime Patrol Aircraft



  Science Modifications suited for MPA



  Military Options

• Cargo Aircraft



  Room for 40 Paratroopers and Cargo

• ASW Aircraft



  Tethered sensor

• Gunship



  Gunship with FLIR ball



  Fuerza Aérea Colombiana gunship twin side firing guns

• Survey Aircraft



  Spectrem Basler BT-67 for Aerial Survey

• Firefighting Aircraft



  US Forest Service

• Rainmaking Aircraft



  Thai Air Force cloud seeding

• Executive Aircraft



  Comfortable seating

Worldwide Operators

Civilian operators

Basler added upper lip door to accomodate five LD3 containers

•     Aerocontractors, United States
•     Antarctic Logistics Centre International (ALCI), South Africa
•     Alfred Wegener Institute for Polar and Marine Research, Germany
•     Basler Airlines
•     Bell Geospace Aviation, Inc, United States
•     Cargo North



  Cargo North

•     Kenn Borek Air, Canada
•     Polar Research Institute of China, China[3]
•     Spectrem Air Surveys, South Africa
•     United States Forest Service, United States
•     World Air Logistics, Thailand

Military operators

• Bolivian Air Force
• Colombian Air Force



  Fuerza Aérea Colombiana gunship with FLIR ball

• Colombian National Police
• El Salvador Air Force
• Guatemalan Air Force
• Malawi Air Force
• Mali Air Force
• Mauritanian Air Force
• Royal Thai Air Force



  Royal Thai Air Force

• United States Air Force



  U.S. Special Operations in Afghanistan with FLIR ball

As of 2007, Basler Turbo Conversions has produced fifty BT-67's. Indicative pricing from open sources puts the basic BT-67 aircraft price at $6.5 million (2012), and an aircraft equipped with maximum capability would probably run at $15 plus million.
